Referentie : NVDT240SFDB32B

Merk : DT SWISS

Gewicht : 148gr.

Materiaal : ALUMINUM

Spaakgaten : 32

Remtype : IS (6-BOLT)

Kleur : BLACK

Velgbreedte :

Naaftype : 5 X 100 QR

De bekende 240S naaf, geen EXP

Referentie : GMPO1401400V1

Merk : SAPIM

Gewicht : 1.06gr.

Materiaal :

Spaakgaten : Geen info

Remtype :

Kleur : SILVER

Velgbreedte :

Naaftype :

Most common material for nipples, brass nipples are generally nickel coated to ensure good corrosion resistance. Most wheel building robots can only work with brass nipples. Sapim offer brass nipples in silver and black.

Weight

64 pcs weight Polyax 12mm 60.48 g
64 pcs weight Polyax 14mm 68.19 g
64 pcs weight Polyax 16mm 76.42 g

https://www.sapim.be/nipples/material/brass

Referentie : GMPO1401400CZ

Merk : SAPIM

Gewicht : 1.06gr.

Materiaal :

Spaakgaten : Geen info

Remtype :

Kleur : BLACK

Velgbreedte :

Naaftype :

Most common material for nipples, brass nipples are generally nickel coated to ensure good corrosion resistance. Most wheel building robots can only work with brass nipples. Sapim offer brass nipples in silver and black.

Weight

64 pcs weight Polyax 12mm 60.48 g
64 pcs weight Polyax 14mm 68.19 g
64 pcs weight Polyax 16mm 76.42 g

https://www.sapim.be/nipples/material/brass

Referentie : NVDTROU6902

Merk : DT SWISS

Gewicht : 0gr.

Materiaal :

Spaakgaten :

Remtype :

Kleur :

Velgbreedte :

Naaftype :

Referentie : GICR1431000 ZOI-ZD SAP1518\ 1

Merk : SAPIM

Gewicht : 5.5gr.

Materiaal : STEEL STAINLESS

Spaakgaten : Geen info

Remtype :

Kleur : BLACK

Velgbreedte :

Naaftype :

The CX-Ray still receives one of the best results in fatigue testing of any spoke. Its unique strength and flexibility make the CX-Ray suitable for most bicycle disciplines. The middle section of the spoke is drawn then pressed in a special mold to form its specific profile. CX-Ray spokes are used by top bike racers and triathletes around the world. Even downhillers use them, recognizing their strength and flexibility. Special alloy treatment and sophisticated production make this all possible. The CX-Ray fits in all standard hub holes.

No extra hub hole design; hub manufacturer‘s guarantee is unaffected.
Almost as light as Titanium.
More long lasting than any other spokes on the market.
Extremely high fatigue test results.
Special alloy treatment and sophisticated production.
The best aerodynamic elliptic spoke available.
Produced from high-tensile, fatigue-resistant 18/8 stainless steel conforming to the Sapim quality standard specifications.
Technical specs
Weight: (64 pcs x 260 mm lg) 272 g
Quality: AISI 302
Strength on middle section: 1600 N/mm2

https://www.sapim.be/spokes/aero/cx-ray

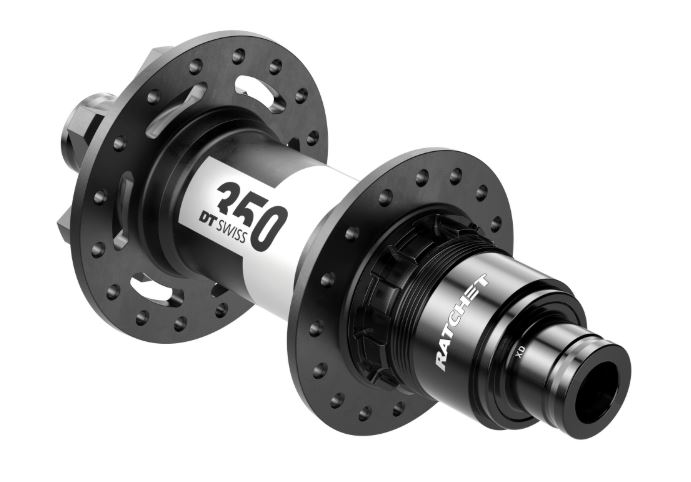

Referentie : NVDT350B15FDB32B

Merk : DT SWISS

Gewicht : 180gr.

Materiaal : ALUMINUM

Spaakgaten : 32

Remtype : IS (6-BOLT)

Kleur : BLACK

Velgbreedte :

Naaftype :

Old design

Referentie : GAPO1401400ZI

Merk : SAPIM

Gewicht : 0.35gr.

Materiaal :

Spaakgaten : Geen info

Remtype :

Kleur : SILVER

Velgbreedte :

Naaftype :

Aluminum is the material of choice for higher performance. For this purpose, Sapim has chosen the highest aluminum grade possible (7075 T6) for this sort of usage. It combines light weight, strength and corrosion resistance. The anodized surface treatment provides various color possibilities.

We offer aluminum nipples in: silver, black, red, orange, gold, blue, green and purple. Sapim’s state of the art manufacturing process ensures the best quality available on the market. As a consequence Sapim’s Aluminum nipples has become the benchmark in the market.

Weight

64 pcs weight Polyax Aluminum 12mm 19.30 g
64 pcs weight Polyax Aluminum 14mm 21.82 g
64 pcs weight Polyax Aluminum 16mm 24.80 ghe best quality available on the market. As a consequence Sapim’s Aluminum nipples has become the benchmark in the market.

https://www.sapim.be/nipples/material/aluminium

Referentie : GAPO1401400RO

Merk : SAPIM

Gewicht : 0.35gr.

Materiaal :

Spaakgaten : Geen info

Remtype :

Kleur : RED

Velgbreedte :

Naaftype :

Aluminum is the material of choice for higher performance. For this purpose, Sapim has chosen the highest aluminum grade possible (7075 T6) for this sort of usage. It combines light weight, strength and corrosion resistance. The anodized surface treatment provides various color possibilities.

We offer aluminum nipples in: silver, black, red, orange, gold, blue, green and purple. Sapim’s state of the art manufacturing process ensures the best quality available on the market. As a consequence Sapim’s Aluminum nipples has become the benchmark in the market.

Weight

64 pcs weight Polyax Aluminum 12mm 19.30 g
64 pcs weight Polyax Aluminum 14mm 21.82 g
64 pcs weight Polyax Aluminum 16mm 24.80 ghe best quality available on the market. As a consequence Sapim’s Aluminum nipples has become the benchmark in the market.

https://www.sapim.be/nipples/material/aluminium

Referentie : 0200895

Merk : QT

Gewicht : 0gr.

Materiaal :

Spaakgaten : Geen info

Remtype :

Kleur :

Velgbreedte :

Naaftype :

STEUN VOOR FIETS (PLOOIBAAR)
Moet nog gemonteerd worden

Referentie : 0903442

Merk : QT

Gewicht : 0gr.

Materiaal : STEEL

Spaakgaten :

Remtype :

Kleur : BLACK

Velgbreedte :

Naaftype :

KETTINGHANGER VOOR THRU AXLE DIAMETER 12MM BREEDTE 130-150MM
Ideaal om de kader te beschermen tijdens het kuisen of vervoeren van de fiets
Thru axle 12mm
Naafbreedte: 130-150mm

Referentie : NVDT24PR24CL4745S

Merk : DT SWISS

Gewicht : 191gr.

Materiaal : ALUMINUM

Spaakgaten : 24

Remtype : CENTERLOCK

Kleur : BLACK

Velgbreedte :

Naaftype : 12 X 142 TA

Product details
With the latest generation of the 240 hub, the strengths have been further enhanced. The latest DT Swiss Ratchet EXP® freehub system increases the bearing lifetime thanks to the increased bearing distance. The new version of the end caps simplifies the tool-free disassembly and makes maintenance easier. The hollow-machined ratchets transfers the energy invested directly into acceleration thanks to the 36 teeth.

Material
Aluminum
Freehub system
Ratchet EXP 36

Referentie : NVDT24PF24CL4734S

Merk : DT SWISS

Gewicht : 104gr.

Materiaal : ALUMINUM

Spaakgaten : 24

Remtype : CENTERLOCK

Kleur : BLACK

Velgbreedte :

Naaftype : 12 X 100 TA

Product details
With the latest generation of the 240 hub, the strengths have been further enhanced. The latest DT Swiss Ratchet EXP® freehub system increases the bearing lifetime thanks to the increased bearing distance. The new version of the end caps simplifies the tool-free disassembly and makes maintenance easier. The hollow-machined ratchets transfers the energy invested directly into acceleration thanks to the 36 teeth.

Material
Aluminum
Freehub system
Ratchet EXP 36

Referentie : Luc Scram WIELSET GRAVEL 25 Acces Hole test Orn

Merk : WHEELSTUFF

Gewicht : 1513gr.

Materiaal : CARBON UD

Spaakgaten : 24

Remtype : CENTERLOCK

Kleur : BLACK MATTE

Velgbreedte : 25,0 30,0 36,0 OS 2,0

Naaftype : 12 X 100 12 X 142 TA

Key features: HANBUILT Doe een bod!
Hole: 24H
Disc Brake
Internal/External Width: 25mm/30mm Depth: 36mm
Asymmetric drilling, 2mm
UD matt finish
14/14 X2/X2
Hookless
Spokes Sapim Front Race, Back CX-Sprint

Wij kunnen uiteraard ook andere naven gebruiken uit ons gamma.

ref
4583
4860
4592
https://www.instagram.com/p/Crl8ynYp70c/?hl=nl
Bike photo als illlustratie

25,0 30,0 36,0 OS 2,0

Referentie : V2 HUB MTB MICROSPLINE 12MM

Merk : ERASE

Gewicht : 0gr.

Materiaal : TITANIUM

Spaakgaten :

Remtype :

Kleur : SILVER

Velgbreedte :

Naaftype :

Titanium freehub (MTB, V2, Thru 12mm, Shimano Microspline)
V1 hubs are with adjustment play system and have been sold till 2021.
V2 hubs are without adjustment play system and been sold from 2022.

Referentie : ERASE MTB REAR HUB 28 V2 XD RED

Merk : ERASE

Gewicht : 232gr.

Materiaal : ALUMINUM

Spaakgaten : 28

Remtype : CENTERLOCK

Kleur : RED

Velgbreedte :

Naaftype : 12 X 148 TA BOOST

Main informations
357 Weight (gr)
60 Engagement points
6900 Bearings series
380 Price (€)
Tech informations
Materials
The hubshells, axles and caps are made from 7075T6 aerospace aluminium.

The freehub is made from Grade 5 titanium and the freewheel ratchet is made from stainless steel.

Axles sizes
The front hubs are available in 110x15 (Boost).

The rear hubs are available in 148x12 (Boost) and 157x12 (Superboost).

Weight
Front : from 125gr
Rear : from 232gr

Spoke holes
28 or 32 spoke holes.

Bearings
We are using radial and truly reliable bearings, sourced from TPI.

Bearings sizes
We only use 6900 series bearings on our MTB hubs so they may last as long as your wheels.

Front : 2x 6903
Rear Sram XD : 4x 6902
Rear Shimano Microspline : 3x 6902 + 1x 6802

Titanium freehub
We use Grade 5 titanium to make the freehub. Why? Because we didn't want to see anymore sprocket marks on the freehub without taking too much weight.

Ratchet Technology (60 engagement points)
The Ratchet Technology is one of the most reliable system because 100% of the system surface is working when you put power on your pedals.

Geometry
The hub geometry is a very important aspect of a hub design. It defines the spokes length, but more importantly the wheel lateral stiffness. Further is the flange from the hub center, higher is the lateral stifness. Therefore, the wheel will be nervous and have accurate trajectories.


Easy service
- You can open our hubs by hand, just by pulling the end-caps off.
- When you pull the freewheel off the rear hub, every pieces stay in place.
- All pieces are large enough so that you'll never loose one of them, no thiny springs or little pawls.

Local sourcing
We didn't make any compromises and developped the hubs as we wanted it. But once the design was fixed, we searched the closest products sourcing and we are proud of this !

Aluminium : Belgium
Titanium : Belgium
Bearings : Taïwan
Seals : Netherlands
Springs : Taiwan (we are searching an european company able to produce it)
Anodizing process : In-house

Prices
110€ for the front hub.

270€ for the rear hub.

Warranty
Our hubs get a LIFETIME warranty.

- The warranty covers only product defaults.
- The warranty does not cover damage or failure caused by crash, misuse of the products, improper assembly or maintenance by an unauthorized dealer.
- The warranty does not cover bearings.

Only for the initial owner.

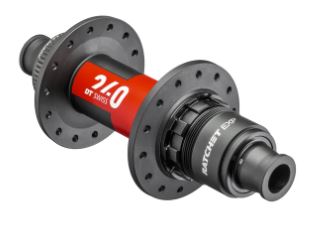

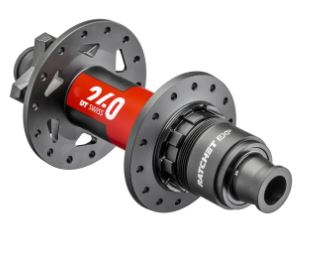

Referentie : H240NCDRR28SA4592S

Merk : DT SWISS

Gewicht : 212gr.

Materiaal : ALUMINUM

Spaakgaten : 28

Remtype : CENTERLOCK

Kleur : BLACK

Velgbreedte :

Naaftype : 12 X 142 TA

Dit is een artikel van een klant en de afwikkeling gebeurt via de klant.

De naaf is van 20/07/2022 en heeft heel weinig km en in zeer goede staat.
Werd vervangen wegens een neieuwe fiets met BOOST maat.
Let op dit is GEEN BOOST maar 12x142mm versie voor ROAD of MTB met die maten.

PRODUCT DETAILS
With the latest generation of the 240 hub, the strengths have been further enhanced. The latest Ratchet EXP freehub system increases the bearing lifetime thanks to the increased bearing distance. The new version of the end caps simplifies the tool-free disassembly and makes maintenance easier. The hollow-machined ratchets transfers the energy invested directly into acceleration thanks to the 36 teeth.

MATERIAL
Aluminum
FREEHUB SYSTEM
Ratchet EXP 36

Referentie : SERVICE

Merk : WIEL_MAKEN

Gewicht : 0gr.

Materiaal :

Spaakgaten : Geen info

Remtype :

Kleur :

Velgbreedte :

Naaftype :

Een wiel samenstellen voor gewicht en prijs?
Selecteer naaf + velg + spaken+ spaaknippel.
Tel daarbij €50 per wiel voor het handwerk en spaakrondellen.
Wij gebruiken altijd spaakrondellen, dit maakt een duurzaam wiel.
Het type dat we gebruiken hangt af van de velgen.

EEN VOLLEDIGE WIELSET omvat tubeless dichtmaken en ventielen in MTB wielen.
Lees hoe we een wiel opbouwen:
https://www.thewheelstuff.be/bike-blog/het-opbouwen-van-een-wiel/

Referentie : 178 - 315 14G WHITE

Merk : BERD

Gewicht : 2.5gr.

Materiaal : POLYPROPYLEEN

Spaakgaten : Geen info

Remtype :

Kleur : WHITE

Velgbreedte :

Naaftype :

TECHNOLOGY
Berd spokes are made from an advanced polymer called ultra high molecular weight polyethylene (UHMWPE) that has 12 times the strength-to-weight ratio of steel and floats on water. Berd spokes have an improved fatigue life compared to steel and are impervious to the elements.

Check out https://berdspokes.com/pages/technology

Referentie : 178 - 315 14G BLACK

Merk : BERD

Gewicht : 2.5gr.

Materiaal : POLYPROPYLEEN

Spaakgaten : Geen info

Remtype :

Kleur : BLACK

Velgbreedte :

Naaftype :

TECHNOLOGY
Berd spokes are made from an advanced polymer called ultra high molecular weight polyethylene (UHMWPE) that has 12 times the strength-to-weight ratio of steel and floats on water. Berd spokes have an improved fatigue life compared to steel and are impervious to the elements.

Check out https://berdspokes.com/pages/technology

Referentie : ERASE MTB REAR HUB CL V2 28 BERD

Merk : ERASE

Gewicht : 230gr.

Materiaal : ALUMINUM

Spaakgaten : 28

Remtype : CENTERLOCK

Kleur : BLACK MATTE

Velgbreedte :

Naaftype : 12 X 148 TA BOOST

Tech informations
**ERASE MTB Boost Centerlock Rear (hooks for Berd spokes)**

Materials
The hubshells, axles and caps are made from 7075T6 aerospace aluminium.

The freehub is made from Grade 5 titanium and the freewheel ratchet is made from stainless steel.

Axles sizes
The front hubs are available in 110x15 (Boost)
The rear hubs are available in 148x12 (Boost)

Weight
Front : from 124gr
Rear : from 230gr

Spoke holes
28 or 32 spoke holes.

Bearings
We are using radial and truly reliable bearings, sourced from TPI.

Bearings sizes
We only use big bearings on our MTB hubs so they may last as long as your wheels.

Front Boost : 2x 6903
Front DH : 2x 6805
Rear Sram XD : 4x 6902
Rear Shimano Microspline : 3x 6902 + 1x 6802

Titanium freehub
We use Grade 5 titanium to make the freehub. Why? Because we didn't want to see anymore sprocket marks on the freehub without taking too much weight.

Ratchet Technology (60 engagement points)
The Ratchet Technology is one of the most reliable system because 100% of the system surface is working when you put power on your pedals.

Geometry
The hub geometry is a very important aspect of a hub design. It defines the spokes length, but more importantly the wheel lateral stiffness. Further is the flange from the hub center, higher is the lateral stifness. Therefore, the wheel will be nervous and have accurate trajectories.


Easy service
- You can open our hubs by hand, just by pulling the end-caps off.
- When you pull the freewheel off the rear hub, every pieces stay in place.
- All pieces are large enough so that you'll never loose one of them, no thiny springs or little pawls.

Local sourcing
We didn't make any compromises and developped the hubs as we wanted it. But once the design was fixed, we searched the closest products sourcing and we are proud of this !

Aluminium : Belgium
Titanium : Belgium
Bearings : Taïwan
Seals : Netherlands
Springs : Taiwan (we are searching an european company able to produce it)
Anodizing process : In-house

Prices
110€ for the front hub.

270€ for the rear hub.

Warranty
Our hubs get a LIFETIME warranty.

- The warranty covers only product defaults.
- The warranty does not cover damage or failure caused by crash, misuse of the products, improper assembly or maintenance by an unauthorized dealer.
- The warranty does not cover bearings.

Only for the initial owner.

ERASE MTB IS-6 holes Hubs
Made from 7075T6 aerospace aluminium, our mtb hubs ally strenght, reliability, easy servicing, great geometry, long life bearings and have an everlasting titanium freehub with a 6 degrees engagement.

- Titanium freehub
- 60 engagement points
- From 387 g / pair

LIFETIME Warranty

Referentie : ERASE MTB FRONT HUB CL V2 28 BERD

Merk : ERASE

Gewicht : 124gr.

Materiaal : ALUMINUM

Spaakgaten : 28

Remtype : CENTERLOCK

Kleur : BLACK

Velgbreedte :

Naaftype : 15 X 110 TA BOOST

Tech informations
**ERASE MTB Boost Centerlock Rear (hooks for Berd spokes)**

Materials
The hubshells, axles and caps are made from 7075T6 aerospace aluminium.

The freehub is made from Grade 5 titanium and the freewheel ratchet is made from stainless steel.

Axles sizes
The front hubs are available in 110x15 (Boost)
The rear hubs are available in 148x12 (Boost)

Weight
Front : from 124gr
Rear : from 230gr

Spoke holes
28 or 32 spoke holes.

Bearings
We are using radial and truly reliable bearings, sourced from TPI.

Bearings sizes
We only use big bearings on our MTB hubs so they may last as long as your wheels.

Front Boost : 2x 6903
Front DH : 2x 6805
Rear Sram XD : 4x 6902
Rear Shimano Microspline : 3x 6902 + 1x 6802

Titanium freehub
We use Grade 5 titanium to make the freehub. Why? Because we didn't want to see anymore sprocket marks on the freehub without taking too much weight.

Ratchet Technology (60 engagement points)
The Ratchet Technology is one of the most reliable system because 100% of the system surface is working when you put power on your pedals.

Geometry
The hub geometry is a very important aspect of a hub design. It defines the spokes length, but more importantly the wheel lateral stiffness. Further is the flange from the hub center, higher is the lateral stifness. Therefore, the wheel will be nervous and have accurate trajectories.


Easy service
- You can open our hubs by hand, just by pulling the end-caps off.
- When you pull the freewheel off the rear hub, every pieces stay in place.
- All pieces are large enough so that you'll never loose one of them, no thiny springs or little pawls.

Local sourcing
We didn't make any compromises and developped the hubs as we wanted it. But once the design was fixed, we searched the closest products sourcing and we are proud of this !

Aluminium : Belgium
Titanium : Belgium
Bearings : Taïwan
Seals : Netherlands
Springs : Taiwan (we are searching an european company able to produce it)
Anodizing process : In-house

Prices
110€ for the front hub.

270€ for the rear hub.

Warranty
Our hubs get a LIFETIME warranty.

- The warranty covers only product defaults.
- The warranty does not cover damage or failure caused by crash, misuse of the products, improper assembly or maintenance by an unauthorized dealer.
- The warranty does not cover bearings.

Only for the initial owner.

ERASE MTB IS-6 holes Hubs
Made from 7075T6 aerospace aluminium, our mtb hubs ally strenght, reliability, easy servicing, great geometry, long life bearings and have an everlasting titanium freehub with a 6 degrees engagement.

- Titanium freehub
- 60 engagement points
- From 387 g / pair

LIFETIME Warranty

Referentie : XLE15X1.5X148

Merk : CARBON_TI

Gewicht : 33gr.

Materiaal : ALUMINUM

Spaakgaten : Geen info

Remtype : DISC

Kleur : BLUE

Velgbreedte :

Naaftype :

X-Lock EVO 15x1.5 X-RockShox (148 mm)
Superlight AL7075 thru axle for RockShox forks. 15 mm diameter, flat head, 148 mm lenght, M15x1.5 thread.
Not compatible with hubs without internal axle.
Excellent stiffness, variable thickness axle, laser etched graphics, 6 mm hex key (not provided) for a fast and safe closing.
Available in many anodized colours.
Made in Italy.

Referentie : 02132

Merk : REVERSE

Gewicht : 104gr.

Materiaal : STEEL

Spaakgaten :

Remtype : IS (6-BOLT)

Kleur : BLUE

Velgbreedte :

Naaftype :

Productinformatie "Aluminium/Staal Ø160mm"
Pimp je remmen!
Met de gekleurde remschijven van Reverse Components kan het remsysteem op de fiets nog meer stijl krijgen. De remschijven kunnen ook eenvoudig worden gecombineerd met de gekleurde omgekeerde remklauwadapters of schijfrotorschroeven.

Kenmerken
- Afmeting: 160 mm
- Wanddikte: 1,8 mm
- Rembevestiging: IS 6 gaten
- Compatibiliteit: geen beperkingen (behalve Fox 32, QR15 x 100 mm)
- Gewicht: 104 g (+/- 5% gewichtstolerantie)
- Materiaal: staal (schijf) / aluminium (ster)

Extra's
- Geanodiseerd en lasergegraveerd

Referentie : 02133

Merk : REVERSE

Gewicht : 104gr.

Materiaal : STEEL

Spaakgaten :

Remtype : IS (6-BOLT)

Kleur : GOLD

Velgbreedte :

Naaftype :

Productinformatie "Aluminium/Staal Ø160mm"
Pimp je remmen!
Met de gekleurde remschijven van Reverse Components kan het remsysteem op de fiets nog meer stijl krijgen. De remschijven kunnen ook eenvoudig worden gecombineerd met de gekleurde omgekeerde remklauwadapters of schijfrotorschroeven.

Kenmerken
- Afmeting: 160 mm
- Wanddikte: 1,8 mm
- Rembevestiging: IS 6 gaten
- Compatibiliteit: geen beperkingen (behalve Fox 32, QR15 x 100 mm)
- Gewicht: 104 g (+/- 5% gewichtstolerantie)
- Materiaal: staal (schijf) / aluminium (ster)

Extra's
- Geanodiseerd en lasergegraveerd

Referentie : XLE15X1.5X148

Merk : CARBON_TI

Gewicht : 33gr.

Materiaal : ALUMINUM

Spaakgaten : Geen info

Remtype : DISC

Kleur : GOLD

Velgbreedte :

Naaftype :

X-Lock EVO 15x1.5 X-RockShox (148 mm)
Superlight AL7075 thru axle for RockShox forks. 15 mm diameter, flat head, 148 mm lenght, M15x1.5 thread.
Not compatible with hubs without internal axle.
Excellent stiffness, variable thickness axle, laser etched graphics, 6 mm hex key (not provided) for a fast and safe closing.
Available in many anodized colours.
Made in Italy.

Referentie : 01805 BLUE

Merk : REVERSE

Gewicht : 26gr.

Materiaal : STEEL

Spaakgaten :

Remtype : IS (6-BOLT)

Kleur : BLUE

Velgbreedte :

Naaftype :

Productinformatie "Remschijfschroevenset - 12 stuks M5x10mm"
Gekleurde stalen remschijfschroeven!

materiaal
Staal S10B21 / Klasse 10.9

Kenmerken
12 x Torx T25-schroeven M5 x 10 mm
Gewicht: 26 g (+/- 5% productietolerantie)

Referentie : 01807 GOLD

Merk : REVERSE

Gewicht : 26gr.

Materiaal : STEEL

Spaakgaten :

Remtype : IS (6-BOLT)

Kleur : GOLD

Velgbreedte :

Naaftype :

Productinformatie "Remschijfschroevenset - 12 stuks M5x10mm"
Gekleurde stalen remschijfschroeven!

materiaal
Staal S10B21 / Klasse 10.9

Kenmerken
12 x Torx T25-schroeven M5 x 10 mm
Gewicht: 26 g (+/- 5% productietolerantie)

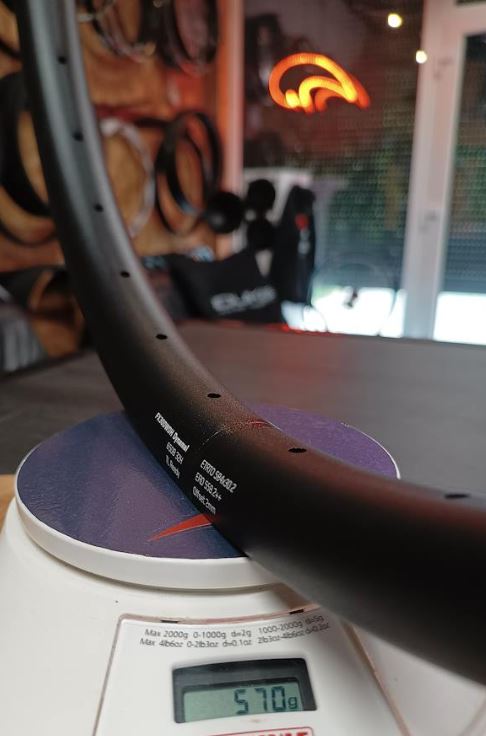

Referentie : #89508

Merk : NEWMEN

Gewicht : 570gr.

Materiaal : ALUMINUM

Spaakgaten : 28

Remtype : DISC

Kleur : BLACK

Velgbreedte : 30,0 33,5 18,7 OS 0 ERD 599

Naaftype :

De opvolger van de SL EG 30 enkel in 28H

TECHNISCHE INFORMATIE / BESCHRIJVING
De nieuwe Beskar 30 Base aluminium velg behaalt op de testbank de beste schokbestendigheidswaarden in zijn gewichtsklasse - zowel in vergelijking met zijn voorganger als die van de concurrentie. De hoogwaardige, gelaste MTB-velg met ongeëvenaarde stabiliteit is perfect voor bandbreedtes van 2,3" tot 2,6". De binnenbreedte van 30 mm maakt een lage luchtdruk mogelijk en dankzij de enorme deukweerstand - door de verder geoptimaliseerde uitlopende velgflanken - is de hoogwaardige aluminium velg geschikt voor gewichtsgeoptimaliseerde trailfietsen op het achterwiel of voor endurofietsen als zorg -vrije velg op het voorwiel. Het vlakke velgprofiel van de Beskar 30 Base geeft de band een meer ronde vorm en daardoor meer grip in de bochten.
Model Family
Beskar
Inner Width
30mm
Intended use
Trail
Material
Aluminium
Rim Profile
Hooked Tubeless Ready
Max. System Weight
150kg
Spoke Hole Number
28h
Washer Required
yes
Eyelets
no
Weight
560g
ERD
599 / 561

Referentie : DURCV2015-28

Merk : DUKE

Gewicht : 420gr.

Materiaal : CARBON

Spaakgaten : 28

Remtype : DISC

Kleur : UD PAINTLESS FINISH

Velgbreedte : 23,0 56,0 29,4 OS 2,0

Naaftype :

The Baccara X 56 are carbon rims suitable for road, long distance road, Gravel Bike & competition use, Versatile on all types of roads and ways, its internal width is 23mm for a height of 56mm.
Available for disc brakes. SLR2 technology, weight reduced by 45g. This process also allows a better filtration of vibrations. The rim profile has been redesigned to improve its aerodynamics and stability in all wind conditions.

The outer width is increased to 29,4mm, has a new UV shape and reduces aerodynamic drag.

The wider 23mm hook width gives more volume to the tires and improves comfort and grip without losing performance. Recommended tire widths are 28mm to 53mm, tubeless or tubetype.

De Baccara X 56 zijn carbon velgen geschikt voor gebruik op de weg, lange afstanden, gravel, vrije tijd en wedstrijden. Veelzijdig op alle soorten wegen en tracks, hun interne breedte is 23mm voor een hoogte van 56mm.

BESCHIKBARE VARIANTEN
VELGDIAMETER(S)
700C

AANTAL GATEN
24 en 28

RIMPROFIEL(S)
ASYMMETRISCH

RANDAFWERKING(EN)
UD PAINTLESS

420 g

Verkrijgbaar in schijfremversie. SLR2 technologie, gewicht verminderd met 45g. Dit proces maakt ook een betere filtering van de trillingen mogelijk. Het velgprofiel is opnieuw ontworpen om de aerodynamica en stabiliteit in alle windomstandigheden te verbeteren. De buitenbreedte is met 29,4 mm breder, heeft een nieuwe UV-vorm en is ontworpen om de luchtweerstand te verminderen.

De grotere haakbreedte van 23 mm geeft de banden meer volume en verbetert het comfort en de grip zonder aan prestaties in te boeten.

Aanbevolen bandbreedtes zijn 28mm tot 53mm, tubeless of tubetype.

Referentie : X

Merk : BARON

Gewicht : 490gr.

Materiaal : CARBON

Spaakgaten : 24

Remtype : DISC

Kleur : BLACK MATTE

Velgbreedte : 22,0 54,0 28,4 OS 1,5

Naaftype :

BARON RIM RR54
Baron RR54 carbon rims are designed for road leisure and competition use. Versatile on all types of road, they have an internal width of 22mm and a height of 54mm. They are primarily designed for flat terrain, but their low weight means they can also be used on hilly roads. For competitors or cyclists looking for performance. The RR54 offers excellent value for money.
VERSATILITY - DURABILITY - STIFFNESS - TUBELESS READY - AERODYNAMICS - RIM WIDTH - OFFSET

BARON RR54 is a tubeless-ready carbon rim for disc brakes. Its 1.5mm asymmetrical profile opens up the spoke brace angle, increasing lateral stiffness and wheel stability without adding weight. The spoke tensions between the two sides are more balanced, guaranteeing greater wheel durability. The wheel is primarily designed for flat terrain, but its low weight means it can also be used on hilly roads. For performance-minded competitors or cyclosportifs. The finish is matte UD carbon, a unidirectional carbon with no visible pattern. Weight: 490g. The 22mm internal width gives more volume to the tires, improving comfort and grip without sacrificing performance. Recommended tire widths are 25mm and 28mm, tubeless or tubetype. However, the rim can accommodate tires from 25mm 1.00" to 53mm 2.10" cross-section. Tubeless-compatible rim (UST system, Tubeless Ready). Requires rim tape and tubeless valve. Use of tubes is still possible. (tire+inner tube).

Referentie : X

Merk : DUKE

Gewicht : 450gr.

Materiaal : CARBON

Spaakgaten : 28

Remtype : DISC

Kleur : UD PAINTLESS FINISH

Velgbreedte : 25,0 56,0 33,0 OS 2,0

Naaftype :

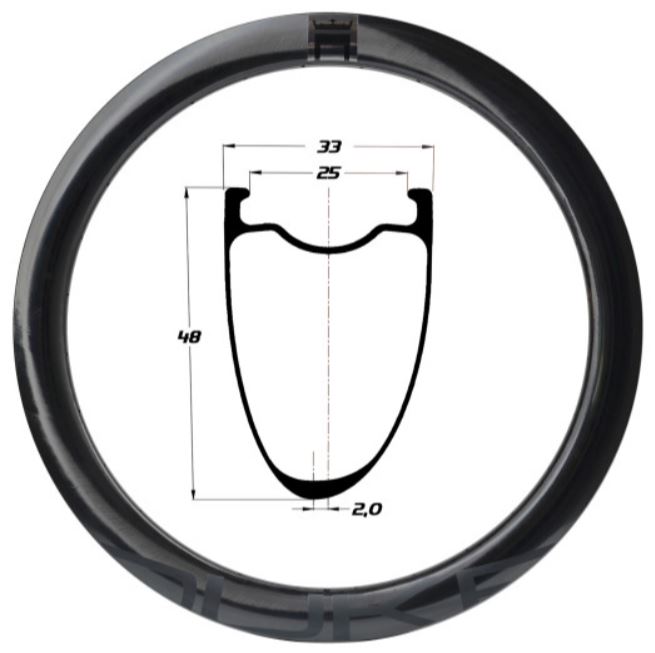

The Baccara RX rims represent the latest generation of DUKE "ALL ROAD" carbon wheels, lighter and stronger for faster riding.
They are suitable for both Road and Gravel use, thanks in particular to their 25mm internal width, which guarantees good versatility.
They benefit from our latest SLR2 manufacturing technology, which combines comfort, lightness and strength: our "MAGIC MIX":

- EXTREME COMFORT thanks to the use of specific resins and processes to filter out some of the vibrations
- ULTRA-LIGHT rim with a new lay-up and a new combination of fibers enabling a weight reduction of 50g compared to a conventional lay-up.
- FIREPROOF STRENGTH thanks to our shock-absorbing resin The range of rim profiles (27, 36, 42, 48 and 56mm) gives you a wide choice to suit your needs.

Aerodynamics have not been forgotten, with a reworked profile to improve air penetration and stability in all wind conditions, essential for performance.
The rim retains the use of hooks to ensure safety above all else, whatever tire is used.
Its unique VFP gloss finish is scratch-resistant and more environmentally friendly.
The asymmetrical profile balances the tension between the two sides of spokes, ensuring greater durability and wheel stability.
While the 25mm width between hooks gives a tire greater volume, improving comfort and grip without sacrificing performance.
Recommended tire widths are 28mm to 2.40".
The best aerodynamics are obtained with 30mm tires.
Rims are tubeless or tubetype with inner tubes compatible.


DUKE, the choice of pro riders: 14x convinced pro and elite teams.


DUKE owns the manufacturing tools.

Referentie : 170

Merk : REVERSE

Gewicht : 536gr.

Materiaal : ALUMINUM

Spaakgaten : 32

Remtype : DISC

Kleur : BLACK

Velgbreedte : 30,0 35,0 21,8 OS 0 ERD 592,3

Naaftype :

Product information "Black ONE 35-TR 29""
- Faster cornering
- More grip
- Increased strength
- Precision stiffness

These were the aims of our new Black ONE rim, to take the renowned success of our previous generation of rims and build on it - with a wider diameter for better tire profiles and tubeless seating, increasing strength and reducing flex.
Our Black-One 29" is a strong and robust rim, perfect for downhill and freeride use.

Features
- Tubeless ready (can be converted to tubeless by the installation of our tubeless kit)
- Rim joint: Pinned and sealed (sealed rim joint for perfect tubeless perfomance)
- Size: 29"
- Holes: 32 (without eyelets)
- ERD: 592.3 mm
- Outer width: 35 mm
- Inner width: 30 mm
- Height: 21.8 mm
- Weight: 549 g (+/- 5% weight tolerance)
- Material: Aluminium
- Valve hole: Presta / SV
- Recommended tyre width: 2,2" - 2,8"

Extras
- Rims without eyelets (for minimum weight and maximum precision)

Referentie : GAPO1401400 ZA--- SAP0096

Merk : SAPIM

Gewicht : 0.35gr.

Materiaal :

Spaakgaten : Geen info

Remtype :

Kleur : BLACK

Velgbreedte :

Naaftype :

Aluminum is the material of choice for higher performance. For this purpose, Sapim has chosen the highest aluminum grade possible (7075 T6) for this sort of usage. It combines light weight, strength and corrosion resistance. The anodized surface treatment provides various color possibilities.

We offer aluminum nipples in: silver, black, red, orange, gold, blue, green and purple. Sapim’s state of the art manufacturing process ensures the best quality available on the market. As a consequence Sapim’s Aluminum nipples has become the benchmark in the market.

Weight

64 pcs weight Polyax Aluminum 12mm 19.30 g
64 pcs weight Polyax Aluminum 14mm 21.82 g
64 pcs weight Polyax Aluminum 16mm 24.80 ghe best quality available on the market. As a consequence Sapim’s Aluminum nipples has become the benchmark in the market.

https://www.sapim.be/nipples/material/aluminium

Referentie : GAPO1401400BL

Merk : SAPIM

Gewicht : 0.35gr.

Materiaal :

Spaakgaten : Geen info

Remtype :

Kleur : BLUE

Velgbreedte :

Naaftype :

Aluminum is the material of choice for higher performance. For this purpose, Sapim has chosen the highest aluminum grade possible (7075 T6) for this sort of usage. It combines light weight, strength and corrosion resistance. The anodized surface treatment provides various color possibilities.

We offer aluminum nipples in: silver, black, red, orange, gold, blue, green and purple. Sapim’s state of the art manufacturing process ensures the best quality available on the market. As a consequence Sapim’s Aluminum nipples has become the benchmark in the market.

Weight

64 pcs weight Polyax Aluminum 12mm 19.30 g
64 pcs weight Polyax Aluminum 14mm 21.82 g
64 pcs weight Polyax Aluminum 16mm 24.80 ghe best quality available on the market. As a consequence Sapim’s Aluminum nipples has become the benchmark in the market.

https://www.sapim.be/nipples/material/aluminium

Referentie : GAPO1401400GR

Merk : SAPIM

Gewicht : 0.35gr.

Materiaal :

Spaakgaten : Geen info

Remtype :

Kleur : GREEN

Velgbreedte :

Naaftype :

Aluminum is the material of choice for higher performance. For this purpose, Sapim has chosen the highest aluminum grade possible (7075 T6) for this sort of usage. It combines light weight, strength and corrosion resistance. The anodized surface treatment provides various color possibilities.

We offer aluminum nipples in: silver, black, red, orange, gold, blue, green and purple. Sapim’s state of the art manufacturing process ensures the best quality available on the market. As a consequence Sapim’s Aluminum nipples has become the benchmark in the market.

Weight

64 pcs weight Polyax Aluminum 12mm 19.30 g
64 pcs weight Polyax Aluminum 14mm 21.82 g
64 pcs weight Polyax Aluminum 16mm 24.80 ghe best quality available on the market. As a consequence Sapim’s Aluminum nipples has become the benchmark in the market.

https://www.sapim.be/nipples/material/aluminium

Referentie : GAPO1401400LI

Merk : SAPIM

Gewicht : 0.35gr.

Materiaal :

Spaakgaten : Geen info

Remtype :

Kleur : PURPLE

Velgbreedte :

Naaftype :

Aluminum is the material of choice for higher performance. For this purpose, Sapim has chosen the highest aluminum grade possible (7075 T6) for this sort of usage. It combines light weight, strength and corrosion resistance. The anodized surface treatment provides various color possibilities.

We offer aluminum nipples in: silver, black, red, orange, gold, blue, green and purple. Sapim’s state of the art manufacturing process ensures the best quality available on the market. As a consequence Sapim’s Aluminum nipples has become the benchmark in the market.

Weight

64 pcs weight Polyax Aluminum 12mm 19.30 g
64 pcs weight Polyax Aluminum 14mm 21.82 g
64 pcs weight Polyax Aluminum 16mm 24.80 ghe best quality available on the market. As a consequence Sapim’s Aluminum nipples has become the benchmark in the market.

https://www.sapim.be/nipples/material/aluminium

Referentie : 190104036

Merk : RYDE

Gewicht : 0gr.

Materiaal : ALUMINUM

Spaakgaten : Geen info

Remtype :

Kleur : BLACK

Velgbreedte :

Naaftype :

The lightweight aluminium valve has a round, rubber seal at the bottom. This way the valve fits not only perfectly with all Ryde rims, but also perfectly with almost every other brand rim. The nut on top of the rim has a rubber sealing to avoid scratching the rim and offering resistance to turn loose by itself. The insert of the valve is removable with the added tool for fast filling of the tyre with tubeless fluid.

lenght 36 mm, 60 mm, 80 mm
colour : black

Referentie : 190104060

Merk : RYDE

Gewicht : 0gr.

Materiaal : ALUMINUM

Spaakgaten : Geen info

Remtype :

Kleur : BLACK

Velgbreedte :

Naaftype :

The lightweight aluminium valve has a round, rubber seal at the bottom. This way the valve fits not only perfectly with all Ryde rims, but also perfectly with almost every other brand rim. The nut on top of the rim has a rubber sealing to avoid scratching the rim and offering resistance to turn loose by itself. The insert of the valve is removable with the added tool for fast filling of the tyre with tubeless fluid.

lenght 36 mm, 60 mm, 80 mm
colour : black

Referentie : 700230

Merk : RYDE

Gewicht : 540gr.

Materiaal : ALUMINUM

Spaakgaten : 28

Remtype :

Kleur : BLACK

Velgbreedte : 20,8 25,5 24,8 OS 3

Naaftype :

EDGE SERIES
Strong enough to withstand serious use, light enough to be at the front of the pack. With technologies carried over from the Trace Series, the Edge Series is up with the very best rims out there. The advantages offered by both series are wider rims to extract the maximum performance out of the tires. The offset of the spoke holes and the directional drilling makes a laced wheels not only stiffer and stronger, but will hold spoke tension much longer.

EDGE R 25
This rim our allrounder with a modern wide shape and the medium sized height of 24,9mm (UCI conform as classic rim shape). The symmetric version is foreseen for front wheels.

Referentie : 700211

Merk : RYDE

Gewicht : 440gr.

Materiaal : ALUMINUM

Spaakgaten : 28

Remtype :

Kleur : BLACK

Velgbreedte : 21,8 25,8 16,5 OS 3

Naaftype :

Referentie : 700210

Merk : RYDE

Gewicht : 440gr.

Materiaal : ALUMINUM

Spaakgaten : 32

Remtype :

Kleur : BLACK

Velgbreedte : 21,8 25,8 16,5 OS 3

Naaftype :

Referentie : 700215

Merk : RYDE

Gewicht : 540gr.

Materiaal : ALUMINUM

Spaakgaten : 32

Remtype :

Kleur : BLACK

Velgbreedte : 25,8 30,0 19,5 OS 3

Naaftype :

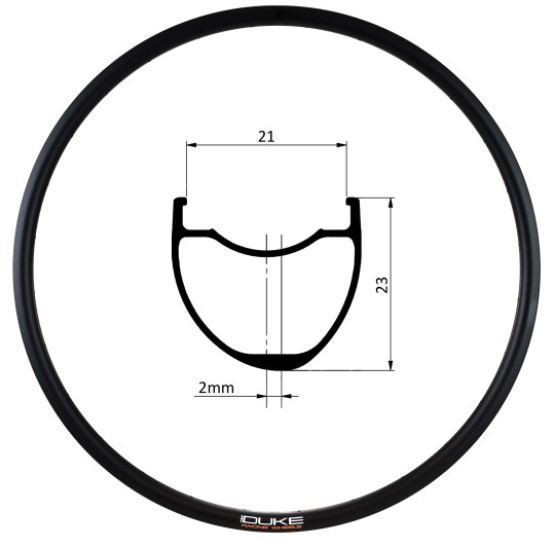

Referentie : DUXCV2002

Merk : DUKE

Gewicht : 376gr.

Materiaal : ALUMINUM

Spaakgaten : 28

Remtype :

Kleur : BLACK

Velgbreedte : 23,5 26,4 16 OS 2

Naaftype :

The Lucky Star Ultra is a lightweight pure XC aluminium rim. It is characterised by its unrivalled stiffness/weight and strength/weight ratios, thanks in part to the use of Dynamal aluminium.

DUKE has created an innovative profile, following its own experience with a very strict specification.This rim inaugurates a new modern geometry with an asymmetric profile and hookless walls.The rim holes are off-centre (offset), which makes it possible to close the spoke umbrella more tightly. This rim is more stable and increases the lateral stiffness of the wheel.The spoke tensions between the two plies are more balanced, which guarantees a better durability of the wheel.The hookless rim walls allow for both rim reinforcement and weight reduction.

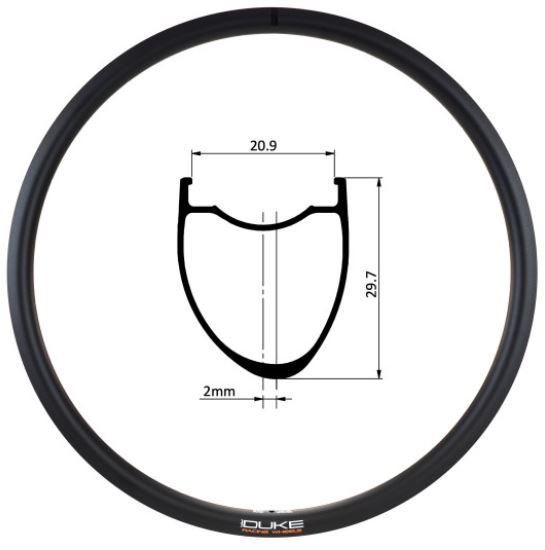

Referentie : VIDUVE83

Merk : DUKE

Gewicht : 406gr.

Materiaal : ALUMINUM

Spaakgaten : 32

Remtype :

Kleur : BLACK

Velgbreedte : 25,5 28,5 17 OS 2,1

Naaftype :

The Lucky Star HD 6TERS are aluminium rims designed for all types of XC, XC racing and trail riding. The front/rear widths are differentiated: 28mm/26mm or 30mm/28mm depending on the tyre section.

They are characterised by good lateral stiffness and very good strength at a low weight, thanks in part to the use of Dynamal aluminium. The rims feature a new, modern, lower geometry with an asymmetrical profile and hookless walls. The rim holes are off-centre (offset), which makes it possible to close the spoke umbrella more tightly. This makes the rim more stable and increases the lateral stiffness of the wheel. The spoke tensions between the two plies are more balanced, which guarantees a better durability of the wheel. The hookless rim walls allow for both rim reinforcement and weight reduction.

Referentie : NVDT350BRCL32148 XD

Merk : DT SWISS

Gewicht : 250gr.

Materiaal : ALUMINUM

Spaakgaten : 32

Remtype : CENTERLOCK

Kleur : BLACK

Velgbreedte :

Naaftype : 12 X 148 TA BOOST

DT Swiss 350 Center Lock (old design) met verwijderbare sticker

Referentie : NVDT350B15FCL32B

Merk : DT SWISS

Gewicht : 142gr.

Materiaal : ALUMINUM

Spaakgaten : 32

Remtype : CENTERLOCK

Kleur : BLACK

Velgbreedte :

Naaftype : 15 X 110 TA BOOST

DT Swiss 350 Center Lock (old design) met verwijderbare sticker

Referentie : NVDT35015FCL32B

Merk : DT SWISS

Gewicht : 138gr.

Materiaal : ALUMINUM

Spaakgaten : 32

Remtype : CENTERLOCK

Kleur : BLACK

Velgbreedte :

Naaftype : 15 X 100 TA

DT Swiss 350 Center Lock (old design) met verwijderbare sticker

Referentie : NOTRTCT90011BOX

Merk : NOTUBES

Gewicht : 372gr.

Materiaal : ALUMINUM

Spaakgaten : 32

Remtype : DISC

Kleur : BLACK

Velgbreedte : 23,0 26,3 15,8 OS 2

Naaftype :

FEATURES:

23mm internal rim width for 38mm gravel to 2.25" XC tires

Low-profile shape rolls faster, lasts longer, and helps stop tire pinch flats

Laterally stiffer and stronger for improved handling

Wider but even lighter than the original Crest

More durable rim shape and alloy

Most trusted tubeless system for easy setup and low maintenance

Legendary Crest climbing and speed in a high volume rim


DESCRIPTION:

The original Crest rim helped introduce XC racers everywhere to the performance advantages of tubeless. With fast engagement and simple Today’s Crest MK3 is wider and even more versatile, while keeping all the characteristics that make Crest rims so fast on the course. Though wider, the Crest MK3 rim is even lighter than previous versions to accelerate quicker and attack the climbs. WideRight 23mm internal width improves stability with wider tires for more control on even the most technical sections of trail. Unlike many rims that have become too wide to work with 2.25” tires, the Crest MK3’s 23mm internal width maintains razor-sharp handling at speed. Inspired by our carbon technology, the Crest MK3 rim shape adds strength and virtually eliminates the chance of a tire pinch flat, allowing you to run the perfect tire pressure for any condition. That means better handling, less rolling resistance, and more traction. Refined over the past 15 years, our Bead Socket Technology offers the most trusted tubeless seal in the business, making the Crest MK3 the best choice for lightweight, tubeless XC performance.

Referentie : RHP432N142TSA

Merk : HOPE

Gewicht : 304gr.

Materiaal : ALUMINUM

Spaakgaten : 32

Remtype : IS (6-BOLT)

Kleur : BLACK

Velgbreedte :

Naaftype : 12 X 142 TA

Incredibly versatile and easily serviceable hub with a proven reputation for bullet proof quality time and time again. The 6 anodized colors throughout the range give the ultimate in bike customization.

Key Features
10, 11 and 12 speed compatible
Sealed stainless Steel cartridge bearings throughout
Hub shell machined from a single forged aluminum billet
Standard 6 bolt disc fitting
4 Pawl ratchet system with 44 tooth engagement (8.2 deg)
Larger spoke flange to enable stiffer wheel builds
Unsurpassed reliability
Available in 135mm and 142mm and 148mm widths

Referentie : RHP432R142TXD

Merk : HOPE

Gewicht : 300gr.

Materiaal : ALUMINUM

Spaakgaten : 32

Remtype : IS (6-BOLT)

Kleur : RED

Velgbreedte :

Naaftype : 12 X 142 TA

Incredibly versatile and easily serviceable hub with a proven reputation for bullet proof quality time and time again. The 6 anodized colors throughout the range give the ultimate in bike customization.

Key Features
10, 11 and 12 speed compatible
Sealed stainless Steel cartridge bearings throughout
Hub shell machined from a single forged aluminum billet
Standard 6 bolt disc fitting
4 Pawl ratchet system with 44 tooth engagement (8.2 deg)
Larger spoke flange to enable stiffer wheel builds
Unsurpassed reliability
Available in 135mm and 142mm and 148mm widths

Referentie : GAPO1401400GO

Merk : SAPIM

Gewicht : 0.35gr.

Materiaal :

Spaakgaten : Geen info

Remtype :

Kleur : GOLD

Velgbreedte :

Naaftype :

Aluminum is the material of choice for higher performance. For this purpose, Sapim has chosen the highest aluminum grade possible (7075 T6) for this sort of usage. It combines light weight, strength and corrosion resistance. The anodized surface treatment provides various color possibilities.

We offer aluminum nipples in: silver, black, red, orange, gold, blue, green and purple. Sapim’s state of the art manufacturing process ensures the best quality available on the market. As a consequence Sapim’s Aluminum nipples has become the benchmark in the market.

Weight

64 pcs weight Polyax Aluminum 12mm 19.30 g
64 pcs weight Polyax Aluminum 14mm 21.82 g
64 pcs weight Polyax Aluminum 16mm 24.80 ghe best quality available on the market. As a consequence Sapim’s Aluminum nipples has become the benchmark in the market.

https://www.sapim.be/nipples/material/aluminium

Referentie : GAPO1401400OR

Merk : SAPIM

Gewicht : 0.35gr.

Materiaal :

Spaakgaten : Geen info

Remtype :

Kleur : ORANGE

Velgbreedte :

Naaftype :

Aluminum is the material of choice for higher performance. For this purpose, Sapim has chosen the highest aluminum grade possible (7075 T6) for this sort of usage. It combines light weight, strength and corrosion resistance. The anodized surface treatment provides various color possibilities.

We offer aluminum nipples in: silver, black, red, orange, gold, blue, green and purple. Sapim’s state of the art manufacturing process ensures the best quality available on the market. As a consequence Sapim’s Aluminum nipples has become the benchmark in the market.

Weight

64 pcs weight Polyax Aluminum 12mm 19.30 g
64 pcs weight Polyax Aluminum 14mm 21.82 g
64 pcs weight Polyax Aluminum 16mm 24.80 ghe best quality available on the market. As a consequence Sapim’s Aluminum nipples has become the benchmark in the market.

https://www.sapim.be/nipples/material/aluminium

Referentie : #90585

Merk : NEWMEN

Gewicht : 565gr.

Materiaal : ALUMINUM

Spaakgaten : 32

Remtype : DISC

Kleur : BLACK GRAY

Velgbreedte : 30,0 33,8 20,0 OS 0 ERD 596

Naaftype :

De allerlaatste... SL EG 30
Wij gebruiken enkel de SL versie.

TECHNICAL INFORMATION / DESCRIPTION
Super durable rim, engineered to withstand the thoughest Enduro and DH riding. Based on our lightweight and durable NEWMEN Evolution SL rims, we have reinforced the profile even further resulting in the Evolution E.G. rims being extremely resistant against dents. In fact they are 40% more durable than the SL A.30. As with our regular rims, the profile is completly round and the flared flanges keep the tyre rounder on top of making the rims so hard-wearing against dents and deformation.

Eyelets
no
Washer Required
yes
Model Family
Evolution SL
Intended use
Trail bis Downhill
Spoke Hole Number
28h / 32h
Rim Profile
hookless tubeless ready
Weight
530g / 560g
Inner Width
30 mm
Diameter
27,5" / 29"
Max. System Weight
180kg
Material
6069 Aluminium

Referentie : #90726

Merk : NEWMEN

Gewicht : 538gr.

Materiaal : ALUMINUM

Spaakgaten : 32

Remtype : DISC

Kleur : BLACK GRAY

Velgbreedte : 30,0 OS

Naaftype :

Is een wrapping testvelg voor iemand die er niet mee zit en een goedkope All Mountain velg zoekt.
Slechts 1 stuk beschikbaar!
Wij gebruiken enkel de SL versie

TECHNICAL INFORMATION / DESCRIPTION
High-end all-mountain aluminium rim for riders who want the benefits of wide rims. 30mm inner width allow for low pressures and due to the high dent resistance it is even suitable for enduro riders in search of a very light rim.

Weight
480g / 510g
Material
6069 Aluminium
Intended use
Cross Country bis Enduro
Spoke Hole Number
28h / 32h
Diameter
27,5" / 29"
Rim Profile
hookless tubeless ready
Washer Required
yes
Inner Width
30 mm
Eyelets
no
Max. System Weight
150kg
Model Family
Evolution SL

Referentie : Luc Duro #90519 testset

Merk : NEWMEN

Gewicht : 310gr.

Materiaal : CARBON

Spaakgaten : 28

Remtype : DISC

Kleur : BLACK GRAY

Velgbreedte : 25,0 OS ERD 600

Naaftype :

TECHNICAL INFORMATION / DESCRIPTION
Lightweight rims with just the right amount of stiffness make for blazing fast XC wheelsets. The NEWMEN FADE rear hub is significantly quieter compared to other hubs which makes for a completely different experience on the trail. Combining this hub technology with the new X.A.25 carbon fiber rim results in a wheelset with focus on durability and light weight.

Weight
310g
Washer Required
no
Rim Profile
hookless tubeless ready
Eyelets
no
Intended use
Cross Country
Spoke Hole Number
28h
Max. System Weight
130kg
Material
unidirectional (UD) Carbon
Diameter
29"
Inner Width
25 mm
Model Family
Advanced SL

Referentie : #90521

Merk : NEWMEN

Gewicht : 335gr.

Materiaal : CARBON

Spaakgaten : 28

Remtype :

Kleur : BLACK GRAY

Velgbreedte : 30,0 OS ERD 597

Naaftype :

TECHNICAL INFORMATION / DESCRIPTION
A new generation of XC wheels! Wide rims with low weight make for confidence inspiring and fast XC-/Trailbike wheelsets. The 30mm inner width are confidence inspiring on the downhills while minimizing rolling resistance on all surfaces. The NEWMEN FADE rear hub is significantly quieter compared to other hubs which, in combination with the X.A.30 rims, results in wheelsets focused on durability and light weight.

Referentie : #90571

Merk : NEWMEN

Gewicht : 400gr.

Materiaal : ALUMINUM

Spaakgaten : 28

Remtype : DISC

Kleur : BLACK GRAY

Velgbreedte : 25,0 27,5 17,0 OS 0

Naaftype :

WIJ GEBRUIKEN ENKEL DE SL VELGEN!!
Je hebt zeker geen 30mm velgen nodig om een goed XC wielset te gebruiken.
Bij Aluminium velgen is 400gr voor een velg een zeer goede compromis in velgbreedte en gewicht.

TECHNICAL INFORMATION / DESCRIPTION
High-end aluminium rim. Due to the high dent resistance achieved by our flared rim flanges it is ideally suited for modern aggressive trail bikes while still being light enough for XC/marathon riders.
Intended use
Cross Country
Diameter
27,5" / 29"
Max. System Weight
130kg
Weight
380g / 400g
Material
6069 Aluminium
Eyelets
no
Washer Required
yes
Rim Profile
hookless tubeless ready
Model Family
Evolution SL
Inner Width
25 mm

Referentie : #90586

Merk : NEWMEN

Gewicht : 570gr.

Materiaal : ALUMINUM

Spaakgaten : 28

Remtype : DISC

Kleur : BLACK GRAY

Velgbreedte : 30,0 33,8 20,0 OS 0 ERD 596

Naaftype :

Wij gebruiken enkel de SL versie.

TECHNICAL INFORMATION / DESCRIPTION
Super durable rim, engineered to withstand the thoughest Enduro and DH riding. Based on our lightweight and durable NEWMEN Evolution SL rims, we have reinforced the profile even further resulting in the Evolution E.G. rims being extremely resistant against dents. In fact they are 40% more durable than the SL A.30. As with our regular rims, the profile is completly round and the flared flanges keep the tyre rounder on top of making the rims so hard-wearing against dents and deformation.

Eyelets
no
Washer Required
yes
Model Family
Evolution SL
Intended use
Trail bis Downhill
Spoke Hole Number
28h / 32h
Rim Profile
hookless tubeless ready
Weight
530g / 560g
Inner Width
30 mm
Diameter
27,5" / 29"
Max. System Weight
180kg
Material
6069 Aluminium

Referentie : NA.FW.0285

Merk : FUNWORKS

Gewicht : 135gr.

Materiaal : ALUMINUM

Spaakgaten : 32

Remtype : IS (6-BOLT)

Kleur : BLACK

Velgbreedte :

Naaftype : LEFTY 2.0

FUN WORKS N-LIGHT LEFTY 2.0 IS DISC 6-BOLT FRONT HUB
Weight Weenies will have a lot of joy with this noble piece!
A Smart Construction and superlight high quality components are making the Fun Works N-Light Lefty to the perfect Lightweight hub for Cross Country or Trail usage.

Model: N-Light Lefty front hub
Hole Count: 32
Weight: 135 Gramm
Disc Mount: IS (6-bolt)
Axle Standard: Cannondale Lefty 2.0 (60mm)
Type: Front Wheel
Hub-Type: Lefty
Brake interface: Disc IS (6-bolt)
Weight g: 135
Colour: Black, Red, Blue
Related links to Fun Works N-Light Lefty 2.0 IS disc 6-Bolt Front Hub

Referentie : FG.FW.0035

Merk : FUNWORKS

Gewicht : 493gr.

Materiaal : ALUMINUM NEW ERA

Spaakgaten : 32

Remtype : DISC

Kleur : BLACK

Velgbreedte : 30,0 35,0 21,6 OS 0

Naaftype :

FUN WORKS AMRIDE 30 RIM 29"BLACK
Fun Works Amride 30 the Allrounder

The perfect MTB rim for riders who want to tease out the most performance out of their tires.
With an inner width of 30mm this rim can be used besides usual MTB Tires also with the most new Plus Size Tires.The specially developed New Era Alloy wich was used for the production of the Amride 30 makes this rim despite the incredible low weight extremly stiff.This rim feels at home on rooty trails and can be used from XC/Trail to agressive All Mountain. The tubeless ready design allows an easy tubeless setup and ensures the perfect fit of the tire.

Details:
Hole Count 32
Weight 495 Gramm
Use for Cross Country/Trail/All Mountain
Material New Era Aluminium
max. spoke tension: 1200N
max. air pressure: 3bar
ETRTO: 622
ERD: 597
tire pressure 2.5 : 2.4bar (44psi)
tire pressure 2.8 : 2,0bar (40psi)
tire pressure 3.0 : 1,8bar (38psi)
recommend Tape width: 32mm

Specials:
Sandblast Finish
Rim Width 35mm outside 30mm inside
Max System Weight: 120Kg
Size: 29
Brake interface: Disc Brake
Field of application: All Mountain
Weight g: 495
Inner width : 30mm
Max System Weight kg: 120
Colour: Black
Related links to Fun Works Amride 30 Rim 29"black

Referentie : FG.FW.0052

Merk : FUNWORKS

Gewicht : 560gr.

Materiaal : ALUMINUM NEW ERA

Spaakgaten : 32

Remtype : DISC

Kleur : BLACK

Velgbreedte : 30,0 35,0 21,6 OS 0

Naaftype :

FUN WORKS TRACK MACK 30 RIM 29"BLACK
Hybrid rim specially designed for heavy use in Gravity or Freeride bikes and/or for the high loads in E-bikes.
The Track Mack comes with reinforced sidewalls 30mm inside width and is extremely durable and stable.The specially developed New Era Alloy wich was used for the production of the Track Mack 30 makes this rim despite the incredible low weight extremly stiff.

The rim can be used up to a maximum system weight of 130KG in your Gravity or Freeride Bike and/or in an E-Bike at XC to All Mountain use up to 150KG system weight.

The tubeless ready design allows an easy tubeless setup and ensures the perfect fit of the tire.

Details:
Hole Count 32
Weight 550 Gramm
Use for Gravity,Freeride,E-Bike
Material New Era Aluminium
max. spoke tension: 1200N
max. air pressure: 3bar
ERD: 597
ETRTO: 622
tire pressure 2.5 : 2.4bar (44psi)
tire pressure 2.8 : 2,0bar (40psi)
tire pressure 3.0 : 1,8bar (38psi)
recommend Tape width: 32mm

Specials:
Sandblast Finish
Rim Width 35mm outside 30mm inside
Max System Weight for bei Gravity oder Freeride: 130KG
Max System Weight for E-Bike XC to All Mountain use: 150KG
Size: 29
Brake interface: Disc Brake
Field of application: Enduro, Freeride, E-Bike
Weight g: 550
Inner width : 30mm
Max System Weight kg: 130
Colour: Black
Related links to Fun Works Track Mack 30 Rim 29"black

Referentie : Luc Duro XHMTBSLR28MN test

Merk : CARBON_TI

Gewicht : 196gr.

Materiaal : ALUMINUM

Spaakgaten : 28

Remtype : IS (6-BOLT)

Kleur : BLACK MATTE

Velgbreedte :

Naaftype : 5 X 135 QR

X-Hub SL Disc X-12 28
Superlight MTB or Road Disc X-12 Thru axle rear hub with 28 holes oversized Al7075-T6 CNC machined body and axle, I.S. disc rotor fixing system, Hi-performance sealed bearings with external preload system, Al7075-T6 free wheel Shimano/SRAM 9-10-11-12s compatible (XD Compatible SRAM 11-12 speed driver in optional).
(X-Hub SL Disc X-12 28) is a very lightweight and sophisticated product and it is intended for Cross Country or Marathon use.
Warranty voids when used on an electric-assisted bicycle (E-bike).
Several anodized colours available.
Conversion kit to swap from X-12 thru axle to quick release available (sold separately).
100% Made in Italy.
CODE: XHMSLX1228

Referentie : #90178

Merk : NEWMEN

Gewicht : 0gr.

Materiaal :

Spaakgaten :

Remtype :

Kleur :

Velgbreedte :

Naaftype :

Referentie : #90180

Merk : NEWMEN

Gewicht : 0gr.

Materiaal :

Spaakgaten :

Remtype :

Kleur :

Velgbreedte :

Naaftype :

Referentie : ENDURO BEARINGS BY PIECE (6903)

Merk : ERASE

Gewicht : 0gr.

Materiaal :

Spaakgaten :

Remtype :

Kleur :

Velgbreedte :

Naaftype :

Referentie : #90583

Merk : NEWMEN

Gewicht : 600gr.

Materiaal : ALUMINUM

Spaakgaten : 32

Remtype : DISC

Kleur : BLACK GRAY

Velgbreedte : 35,0 38,8 20,0 OS 0 ERD 596

Naaftype :

Referentie : FG.FW.0032

Merk : FUNWORKS

Gewicht : 465gr.

Materiaal : ALUMINUM NEW ERA

Spaakgaten : 32

Remtype : DISC

Kleur : BLACK

Velgbreedte : 30,0 35,0 21,6 OS 0

Naaftype :

FUN WORKS AMRIDE 30 RIM 27,5" | 650B BLACK
Fun Works Amride 30 the Allrounder

The perfect MTB rim for riders who want to tease out the most performance out of their tires.
With an inner width of 30mm this rim can be used besides usual MTB Tires also with the most new Plus Size Tires.The specially developed New Era Alloy wich was used for the production of the Amride 30 makes this rim despite the incredible low weight extremly stiff.This rim feels at home on rooty trails and can be used from XC/Trail to agressive All Mountain. The tubeless ready design allows an easy tubeless setup and ensures the perfect fit of the tire.

Details:
Hole Count 32
Weight 465 Gramm
Use for Cross Country/Trail/All Mountain
Material New Era Aluminium
max. spoke tension: 1200N
max. air pressure: 3bar
ERD: 559
ETRTO: 584
tire pressure 2.5 : 2.4bar (44psi)
tire pressure 2.8 : 2,0bar (40psi)
tire pressure 3.0 : 1,8bar (38psi)
recommend Tape width: 32mm

Specials:
Sandblast Finish
Rim Width 35mm outside 30mm inside
Max System Weight: 120Kg
Size: 27.5
Brake interface: Disc Brake
Field of application: All Mountain
Weight g: 465
Inner width : 30mm
Max System Weight kg: 120
Colour: Black
Related links to Fun Works Amride 30 Rim 27,5" | 650b black

Referentie : FG.FW.0053

Merk : FUNWORKS

Gewicht : 530gr.

Materiaal : ALUMINUM NEW ERA

Spaakgaten : 32

Remtype : DISC

Kleur : BLACK

Velgbreedte : 30,0 35,0 21,6 OS 0

Naaftype :

FUN WORKS TRACK MACK 30 RIM 27,5" | 650B BLACK
Hybrid rim specially designed for heavy use in Gravity or Freeride bikes and/or for the high loads in E-bikes.
The Track Mack comes with reinforced sidewalls 30mm inside width and is extremely durable and stable.The specially developed New Era Alloy wich was used for the production of the Track Mack 30 makes this rim despite the incredible low weight extremly stiff.

The rim can be used up to a maximum system weight of 130KG in your Gravity or Freeride Bike and/or in an E-Bike at XC to All Mountain use up to 150KG system weight.

The tubeless ready design allows an easy tubeless setup and ensures the perfect fit of the tire.

Details:
Hole Count 32
Weight 530 Gramm
Use for Gravity,Freeride,E-Bike
Material New Era Aluminium
max. spoke tension: 1200N
max. air pressure: 3bar
ERD: 559
ETRTO: 584
tire pressure 2.5 : 2.4bar (44psi)
tire pressure 2.8 : 2,0bar (40psi)
tire pressure 3.0 : 1,8bar (38psi)
recommend Tape width: 32mm

Specials:
Sandblast Finish
Rim Width 35mm outside 30mm inside
Max System Weight for bei Gravity oder Freeride: 130KG
Max System Weight for E-Bike XC to All Mountain use: 150KG
Size: 27.5
Brake interface: Disc Brake
Field of application: Enduro, Freeride, E-Bike
Weight g: 530
Inner width : 30mm
Max System Weight kg: 130
Colour: Black
Related links to Fun Works Track Mack 30 Rim 27,5" | 650b black

Referentie : NVDT240F24CL6048S

Merk : DT SWISS

Gewicht : 119gr.

Materiaal : ALUMINUM

Spaakgaten : 24

Remtype : CENTERLOCK

Kleur : BLACK

Velgbreedte :

Naaftype : 12 X 100 TA

Referentie : NVDT240R24CL8486S

Merk : DT SWISS

Gewicht : 212gr.

Materiaal : ALUMINUM

Spaakgaten : 24

Remtype : CENTERLOCK

Kleur : BLACK

Velgbreedte :

Naaftype : 12 X 142 TA

PRODUCT DETAILS
With the latest generation of the 240 hub, the strengths have been further enhanced. The latest Ratchet EXP freehub system increases the bearing lifetime thanks to the increased bearing distance. The new version of the end caps simplifies the tool-free disassembly and makes maintenance easier. The hollow-machined ratchets transfers the energy invested directly into acceleration thanks to the 36 teeth.

MATERIAL
Aluminum
FREEHUB SYSTEM
Ratchet EXP 36

Referentie : #90588

Merk : NEWMEN

Gewicht : 550gr.

Materiaal : ALUMINUM

Spaakgaten : 28

Remtype : DISC

Kleur : BLACK GRAY

Velgbreedte : 30,0 33,8 20,0 OS 0 ERD 596

Naaftype :

Wij gebruiken enkel de SL versie.

Product details
"Super durable rim, engineered to withstand the thoughest Enduro and DH riding. Based on our lightweight and durable NEWMEN Evolution SL rims, we have reinforced the profile even further resulting in the Evolution E.G. rims being extremely resistant against dents. In fact they are 40% more durable than the SL A.30. As with our regular rims, the profile is completly round and the flared flanges keep the tyre rounder on top of making the rims so hard-wearing against dents and deformation. Materials are deployed precisely at critical points and shaved off elsewhere. The flat spoke bed is designed to work with our special washers for extremely high spoke tension values whilst keeping the amount of material used down to a minimum. In contrast, the flanges are substantially thicker than on other rims in the same weight class for added strength and durability. In combination with our Newmen Evolution SL hubs and Sapim Race (2,0-1,8-2,0) spokes it is possible to build a durable and lightweight gravity wheelset. "

colour
black/grey
size
584x30
material
alloy
weight
0,55

Referentie : BZ.DT.0002

Merk : DT SWISS

Gewicht : 26gr.

Materiaal : ALUMINUM

Spaakgaten : Geen info

Remtype : CENTERLOCK

Kleur : BLACK

Velgbreedte :

Naaftype :

DT SWISS CENTERLOCK ADAPTER to IS 6 BOLT DISC ROTOR

DT-Swiss CenterLock adaptor.
Allows 6-bolt rotors to be used on CenterLock hubs.
Rotor thickness between 1.8mm and 2.2mm, maximum rotor size 210mm

Referentie : #90276 Dark Silver newer #90588 Dark Grey

Merk : NEWMEN

Gewicht : 550gr.

Materiaal : ALUMINUM

Spaakgaten : 28

Remtype : DISC

Kleur : BLACK

Velgbreedte : 30,0 33,8 20,0 OS 0 ERD 596

Naaftype :

Wij gebruiken enkel de SL versie.
Dit is een speciale kleur zwart/Zilver
Laatste stuk.

Product details
"Super durable rim, engineered to withstand the thoughest Enduro and DH riding. Based on our lightweight and durable NEWMEN Evolution SL rims, we have reinforced the profile even further resulting in the Evolution E.G. rims being extremely resistant against dents. In fact they are 40% more durable than the SL A.30. As with our regular rims, the profile is completly round and the flared flanges keep the tyre rounder on top of making the rims so hard-wearing against dents and deformation. Materials are deployed precisely at critical points and shaved off elsewhere. The flat spoke bed is designed to work with our special washers for extremely high spoke tension values whilst keeping the amount of material used down to a minimum. In contrast, the flanges are substantially thicker than on other rims in the same weight class for added strength and durability. In combination with our Newmen Evolution SL hubs and Sapim Race (2,0-1,8-2,0) spokes it is possible to build a durable and lightweight gravity wheelset. "

colour
black/grey
size
584x30
material
alloy
weight
0,55

Referentie : #90728

Merk : NEWMEN

Gewicht : 490gr.

Materiaal : ALUMINUM

Spaakgaten : 32

Remtype : DISC

Kleur : BLACK GRAY

Velgbreedte : 30,0 OS

Naaftype :

Wij gebruiken enkel de SL versie

TECHNICAL INFORMATION / DESCRIPTION
High-end all-mountain aluminium rim for riders who want the benefits of wide rims. 30mm inner width allow for low pressures and due to the high dent resistance it is even suitable for enduro riders in search of a very light rim.

Weight
480g / 510g
Material
6069 Aluminium
Intended use
Cross Country bis Enduro
Spoke Hole Number
28h / 32h
Diameter
27,5" / 29"
Rim Profile
hookless tubeless ready
Washer Required
yes
Inner Width
30 mm
Eyelets
no
Max. System Weight
150kg
Model Family
Evolution SL

Referentie : GERA1427000 ZOIZD--\ SAP1534

Merk : SAPIM

Gewicht : 6.24gr.
